How to Trace Emails Sent to External Domains in Exchange Online

As an Exchange Online administrator, tracking email communications with external domains is a critical task for security, compliance, and business intelligence purposes. Whether you need to monitor data exfiltration risks, ensure policy compliance, or analyze business communication patterns, understanding where your organization's emails are going is essential.

While Microsoft provides native tools for email tracking in Exchange Online, these solutions often fall short when it comes to comprehensive reporting and long-term analysis. This post explores both native methods and introduces Promodag Reports as a better alternative for tracking emails sent to external domains.

The Challenge with Native Exchange Online Tools

Exchange Online offers several built-in methods for tracking emails, but each comes with significant limitations:

Message Trace Limitations

The native Message Trace feature in the Exchange Admin Center provides basic email tracking capabilities. While the newer Get-MessageTraceV2 cmdlet has improved retention (90 days for detailed traces), significant limitations remain:

Get-MessageTrace -StartDate (Get-Date).AddDays(-10) -EndDate (Get-Date) | Where-Object {$_.RecipientAddress -notlike "*@yourdomain.com"}

For more detailed tracking with the enhanced cmdlet:

Get-MessageTraceV2 -StartDate (Get-Date).AddDays(-90) -EndDate (Get-Date) | Where-Object {$_.RecipientAddress -notlike "*@yourdomain.com"}

However, Message Trace still has several drawbacks:

  • Limited retention: Only 90 days of data, even with the improved version
  • No aggregation: Results are presented as individual messages, making analysis difficult
  • Basic filtering: Limited ability to group by domains or analyze patterns
  • Export limitations: Difficult to create comprehensive reports for management

Compliance Search Shortcomings

While Compliance Search offers more advanced filtering, it's primarily designed for eDiscovery rather than traffic analysis:

New-ComplianceSearch -Name "ExternalEmailSearch" -ContentMatchQuery "sent:>2024-01-01 AND NOT recipients:@yourdomain.com"

The limitations include:

  • Complex setup: Requires specific permissions and Compliance Manager access
  • Performance issues: Can be slow for large datasets
  • Limited reporting: Results are not optimized for traffic analysis
  • No trend analysis: Lacks historical comparison capabilities

PowerShell Reporting Gaps

Even advanced PowerShell scripts struggle with comprehensive external domain tracking:

$Messages = Get-MessageTraceV2 -StartDate (Get-Date).AddDays(-90) -EndDate (Get-Date) -PageSize 5000
$ExternalMessages = $Messages | Where-Object {$_.RecipientAddress -notlike "*@yourdomain.com"}
$ExternalMessages | Group-Object {($_.RecipientAddress -split "@")[1]} | Sort-Object Count -Descending

While this approach can provide some insights, it faces:

  • Data volume limitations: PowerShell queries can timeout with large datasets
  • Manual processing: Requires custom scripting for meaningful analysis
  • No visualization: Results are text-based and difficult to present
  • Time-intensive: Requires significant administrator time to maintain

A More Flexible Approach: Promodag Reports

Promodag Reports addresses these limitations by providing comprehensive email traffic analysis specifically designed for Exchange environments. Here's how to efficiently track emails sent to external domains:

Step 1: Select the Right Report Template

Open Promodag Reports and navigate to the Mailbox Traffic category in the Report Explorer. The General Mailbox Traffic template provides all the necessary components:

  • Selection tab: Choose which users or groups to analyze
  • Correspondents tab: Filter by external domains
  • Content tab: Customize the level of detail in your report

Step 2: Configure Your Analysis Scope

In the Selection tab, choose your reporting period and user population. You can analyze:

  • Entire organization
  • Specific departments or groups
  • Individual high-risk users
  • Custom user selections based on roles or locations

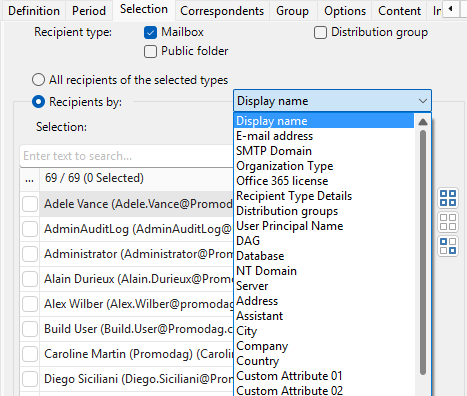

Select mailboxes by directory attributes

Step 3: Filter External Domains

The Correspondents tab allows you to:

  • Include all external domains: Get a complete picture of external communications
  • Focus on specific domains: Target particular external services or partners
  • Capture domain variants: e.g., gmail for all Gmail subdomains.
  • Exclude trusted partners: Filter out known business correspondents

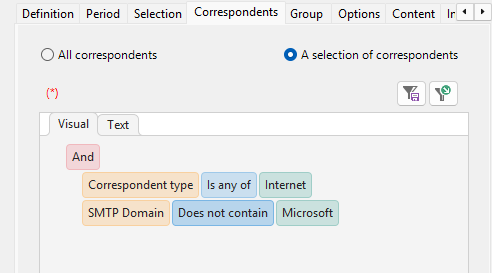

Filter emails by correspondent types

Step 4: Customize Report Detail

Choose your preferred level of detail:

  • Summary view: Total volumes by external domain
  • Detailed breakdown: Individual messages with subjects and timestamps
  • Sender analysis: Identify which users are communicating with external domains most frequently

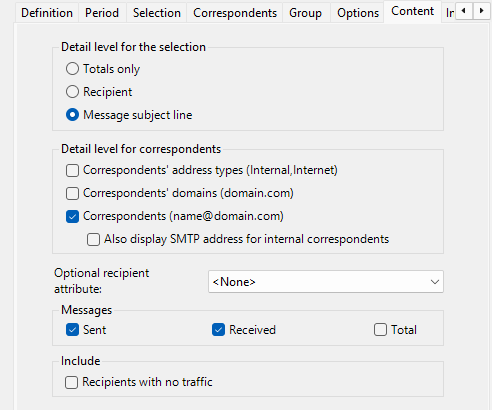

Select the right detail level for your report

Key Advantages of Promodag Reports

Unlike native Exchange Online tools, Promodag Reports offers:

  • Long-term Data Retention: Access years of historical email data for trend analysis and compliance reporting, far beyond the 90-day limitation of native tools.
  • Advanced Filtering: Sophisticated options to isolate specific types of external communication without complex PowerShell scripting.
  • Visual Reporting: Professional charts and graphs that can be easily shared with management and stakeholders.
  • Automated Scheduling: Set up recurring reports to monitor external domain communication patterns over time.
  • Drill-down Capabilities: Start with high-level summaries and dive deep into specific messages when needed.
  • Export Flexibility: Generate reports in multiple formats for further analysis or compliance documentation.

Use Cases for External Domain Tracking

This capability proves valuable for several scenarios

  • Security Monitoring: Identify unusual communication patterns that might indicate data exfiltration
  • Policy Compliance: Ensure users follow corporate communication policies
  • Business Intelligence: Understand communication patterns with customers, partners, and vendors
  • Cost Analysis: Analyze external communication volumes for budgeting and planning
  • Risk Assessment: Identify departments or users with high external communication volumes

Conclusion

While Exchange Online provides basic email tracking capabilities, comprehensive analysis of external domain communications requires more sophisticated tools. Native methods like Message Trace (including the improved Get-MessageTraceV2 cmdlet) and Compliance Search, while functional, lack the depth, retention, and reporting capabilities needed for thorough email traffic analysis.

Promodag Reports bridges this gap by offering purpose-built email traffic analysis tools that transform raw Exchange data into actionable insights. Whether you need to monitor security risks, ensure policy compliance, or analyze business communication patterns, Promodag Reports provides the comprehensive external domain tracking capabilities that native tools simply cannot match.

Ready to gain complete visibility into your organization's external email communications? Discover how Promodag Reports can transform your email traffic analysis at https://www.promodag.com/downloads/.
